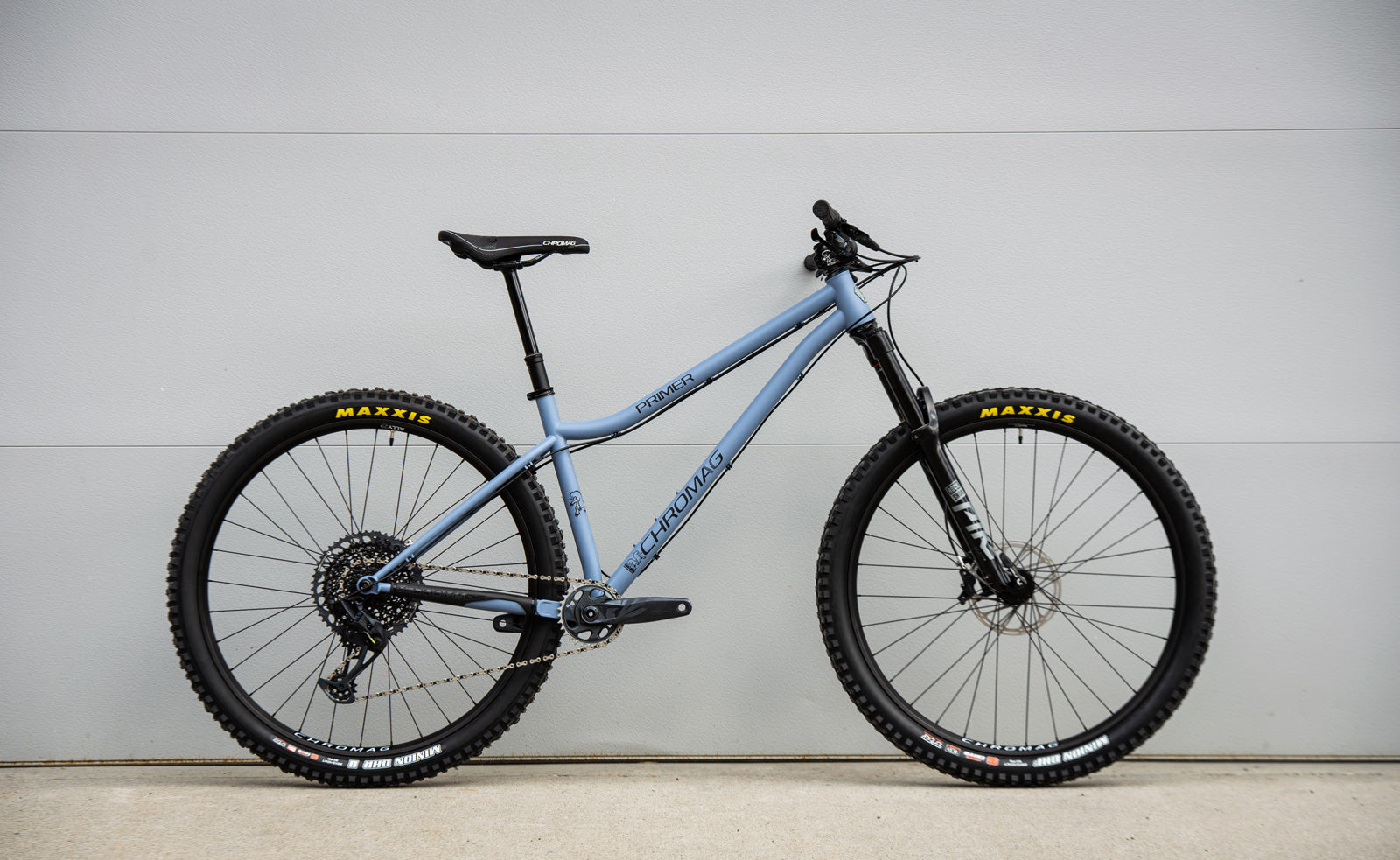

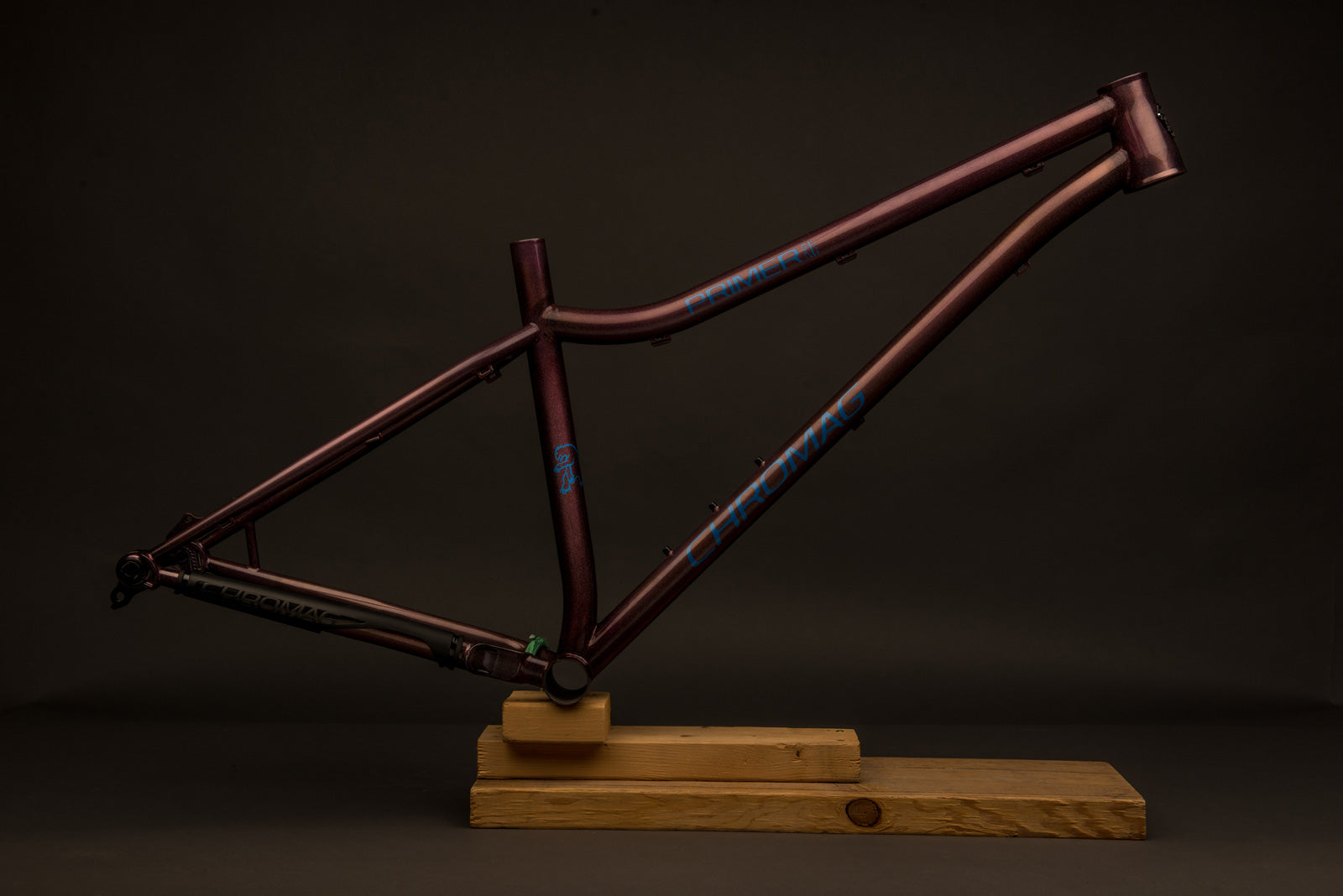

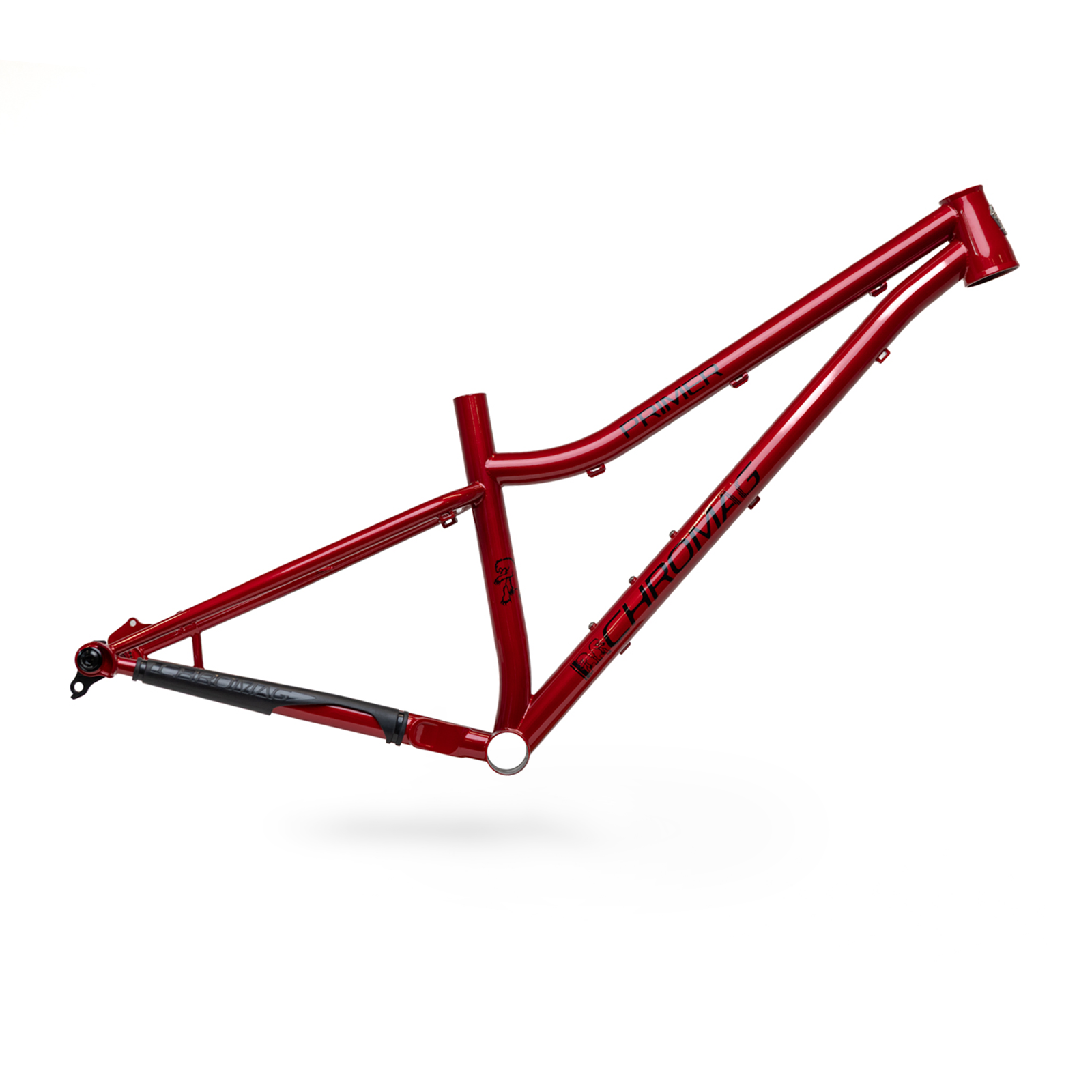

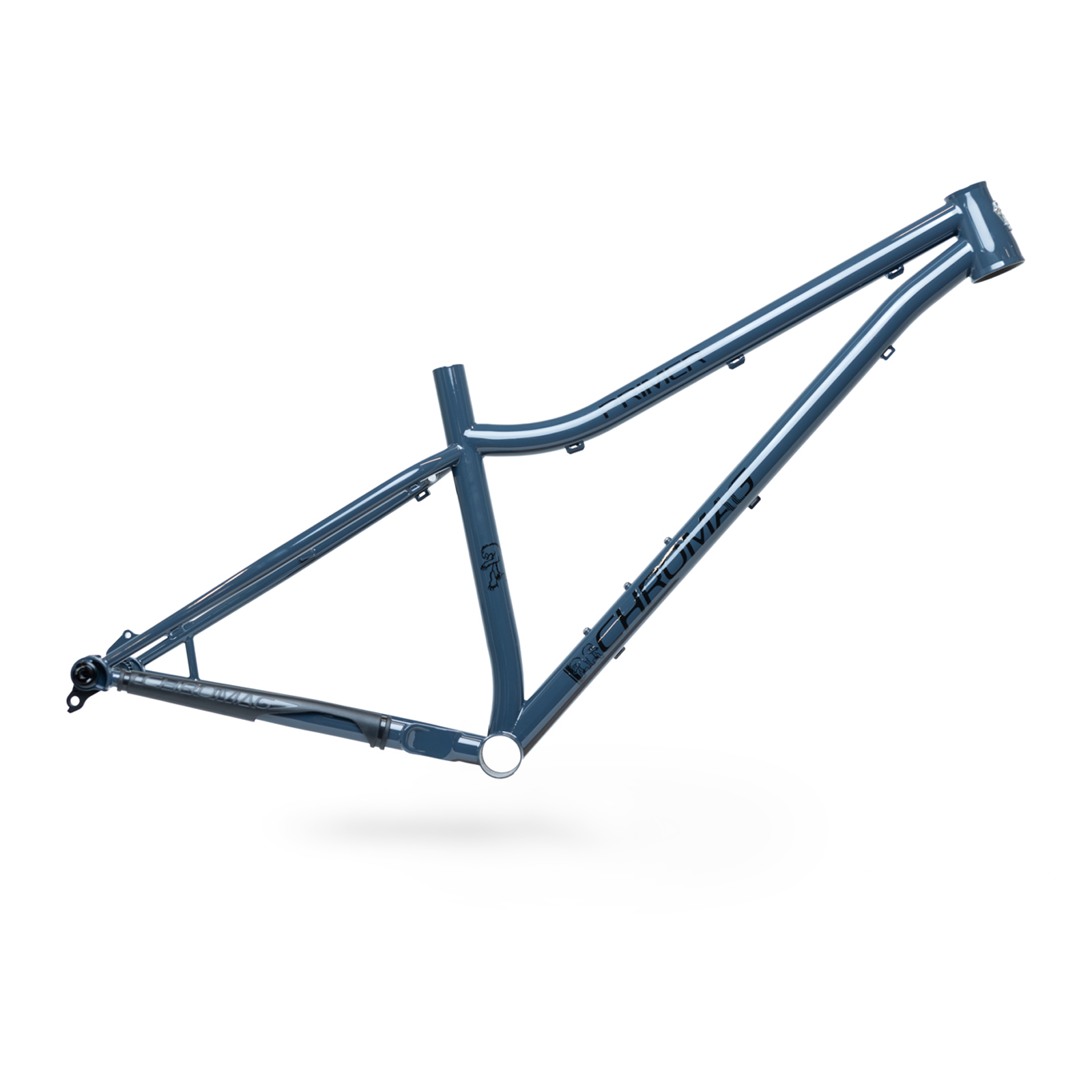

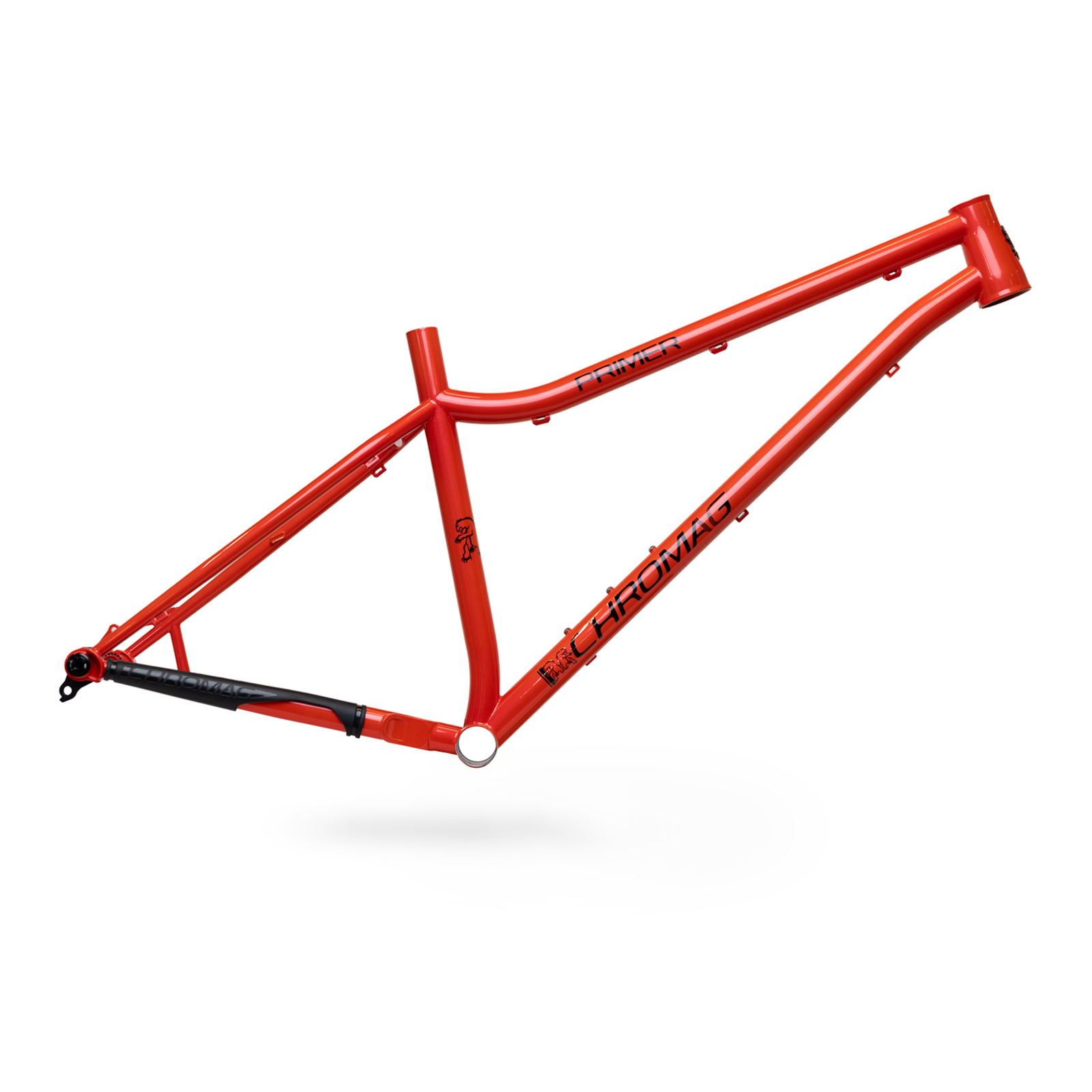

The Primer is a bike built for 29 or 27.5+ wheels with geometry designed for aggressive all mountain riding. It is handbuilt in Canada by local fabricator Mike Truelove, in small batches that are painted individually for each customer.
The Primer uses what we would describe as our most progressive 29er geometry to date (excluding the Doctahawk!), notably the short chainstays, lower than ever BB height, steep seattube with a slack head angle, low stack headtube and long front center. This combination is the most versatile 29er we've ever built.
Building a frame with 27.5+ compatibility means that we had to redesign our ‘yokel’ junction to maximize the chainstay layout clearance. Incorporating a BB92 bb shell and boost dropout spacing also accommodates the most room possible for tire widths as wide as 3.0.
- Looking to spend a little less? Check out the Rootdown.
Due to the fact this item is custom painted, lead times may vary.

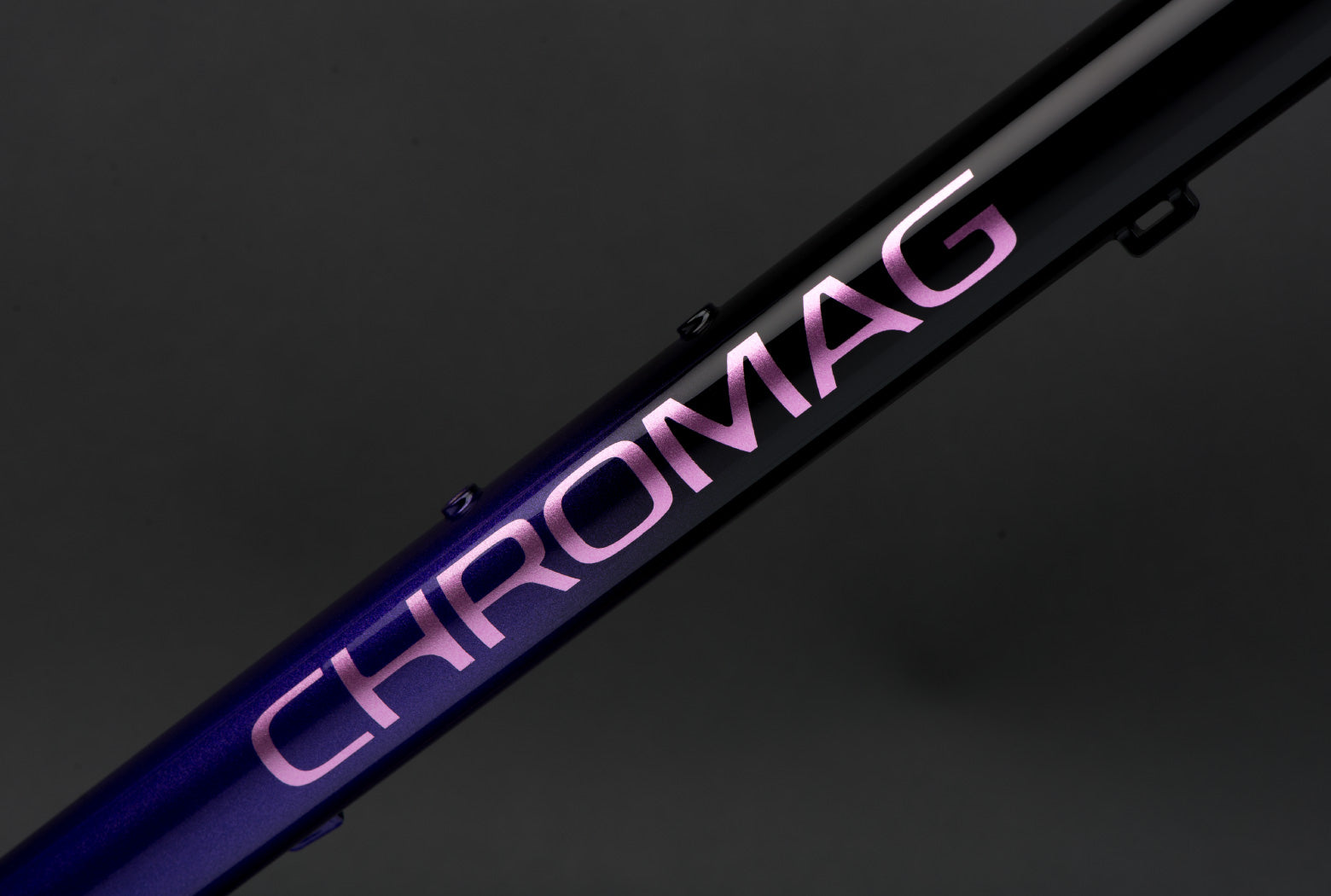

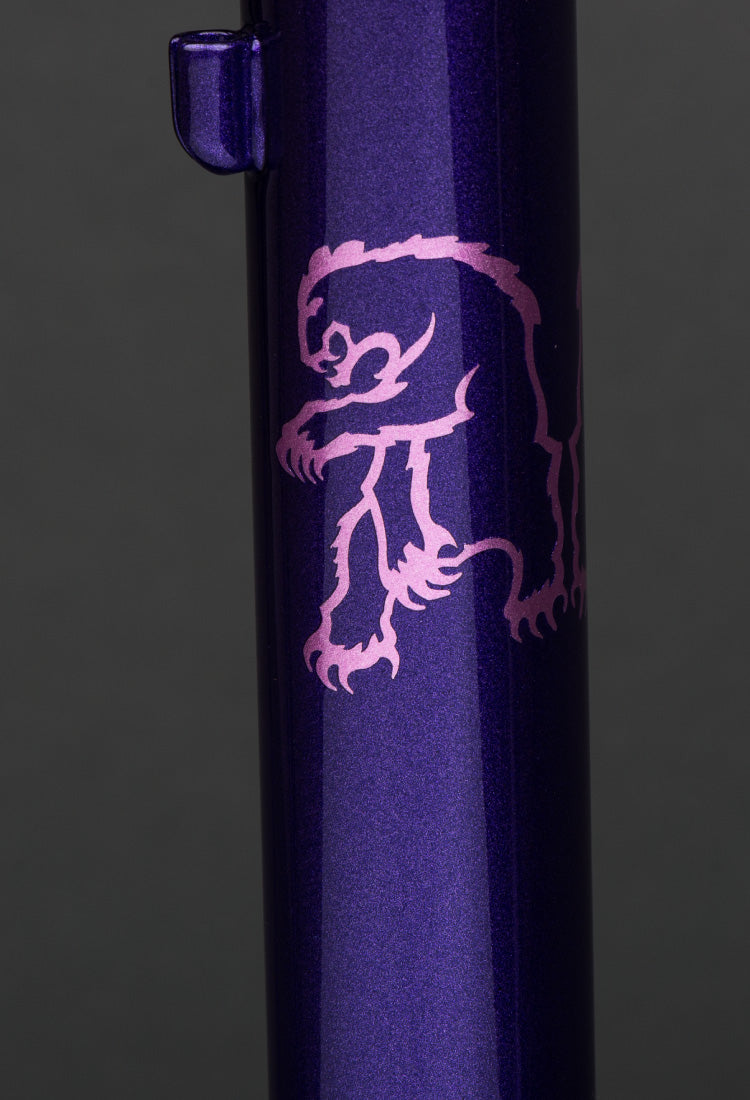

If you select a Custom Paint option, we'll be in touch about your paint job and delivery date once you complete checkout. Woo!
Almost all Chromag frames are made from quality 4130 chromoly steel tubing. Chromoly is an abbreviation for chromium-molybdenum indicating the materials that the steel is alloyed with.
The added chromium helps increase the steels hardenability and also provide some corrosion resistance.
The molybdenum helps to increase the toughness of the steel.
It has a high tensile strength but is also malleable which is what gives our frames their notorious ride quality and feel. Chromoly is often used when more strength is required than that of mild carbon steel.
It falls under the AISI (American Iron & Steel Institute) 41XX designations which is where the “41” comes from. The “30” indicates it contains approximately 0.30% carbon by weight.
Chromoly is much stronger than traditional 1020 steel and it has a higher strength to weight ratio and high tensile strength, which means we can use less material and achieve a product that can withstand the abuse that riders love to throw at it.
Hub Spacing // Boost 148mm (Axle and Hanger Included)
Headset // 44-56 Semi Integrated
Seat Clamp Size // 35mm
Seat post Size // 31.6mm
BB // 92mm Press Fit (PF92)
Wheel Size // 29" or 27+
Recommended Fork Travel // 160mm (±10mm)
Builder // Chris Dekerf and Mike Truelove
|PARTS||G2 BETTER BUILD||G1 BEST BUILD|
|FORK||Rock Shox Lyrik 160mm Boost 110x15mm||Rock Shox Lyrik 160mm Boost 110x15mm|
|STEM||Chromag HiFi 40mm||Chromag HiFi 40mm|
|HANDLEBAR||Chromag OSX 25mm Rise, 800mm Wide||Chromag OSX 25mm Rise, 800mm Wide|
|HEADSET||Cane Creek Forty ZS||Cane Creek Forty ZS|
|CRANK||SRAM GX||SRAM X1 Carbon|
|BRAKES||SRAM G2 RSC||SRAM G2 RSC|
|SHIFTERS||SRAM GX Eagle||SRAM X01 Eagle|
|CASSETTE||SRAM GX Eagle 10-50t||SRAM X01 Eagle 10-50t|
|REAR DERAILLEUR||SRAM GX Eagle||SRAM X01 Eagle|
|WHEELSET||Chromag 29" Phase30 Rims / Chromag R4 Hubs. (Magna40 Rims for 27+)||Chromag 29" Phase30 Rims / Chromag R4Hubs. (Magna40 Rims for 27+)|
|TIRES||Maxxis Minion DHF/DHR||Maxxis Minion DHF/DHR|
|SEATPOST||Rock Shox Reverb||Rock Shox Reverb|
|SADDLE||Chromag Trailmaster DT||Chromag Trailmaster DT|
|GRIPS||Chromag Squarewave||Chromag Squarewave|
|CHAIN||SRAM GX Eagle||SRAM X01 Eagle|
Build options are subject to availability.
To purchase a complete build, please contact us directly. We are happy to answer all your questions about our bikes and products. Call: 604-905-6667 Email: firstname.lastname@example.org
*US pricing applies to all US and International purchases.

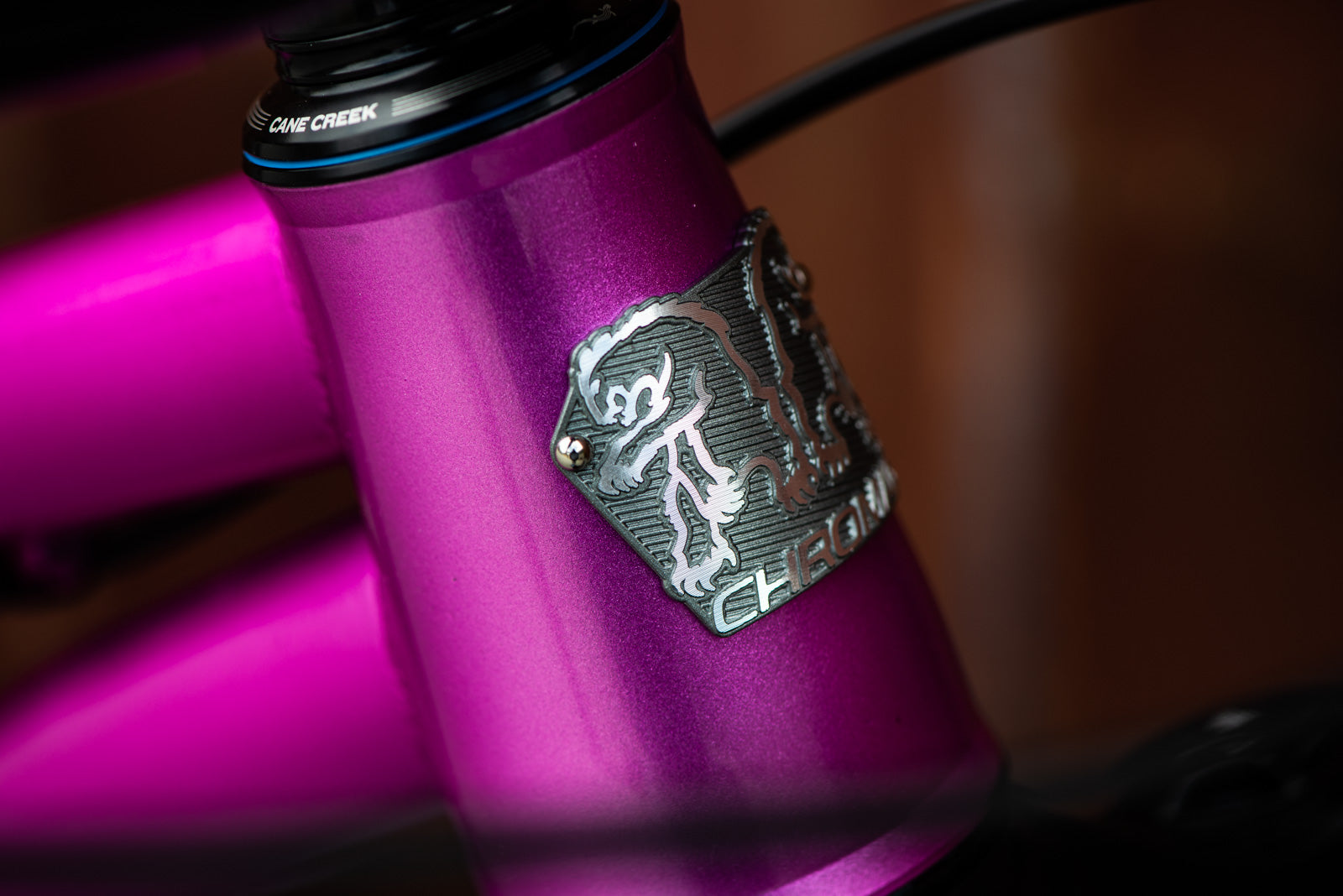

Head Tube Badge
Your bike is special. The head tube badge is the finishing touch so we’ve always made a point of taking the time to do something interesting with it. Our head tube badges have changed over the years and are an indication of the time each bike was made. Whether it’s a cast bronze, or polished stainless steel, water cut aluminum or a 3D CNC carving, each one represents our commitment to detail.
As 12mm through axles have proven to be solid, reliable and convenient, we have committed most of our models to utilize this format. Our 12mm dropouts are accurate and tough and feature a removable derailleur hanger with a sturdy interface for strength and reliability. All 2017 models (excluding Monk and Nice Dreams) will follow the 148mm boost spacing.
Our ‘Yokel’ design is a small machined junction on the chainstay that helps accommodate both tire clearance and chainring clearance. Our first versions were huge CNC yokes that bridged the entire front end of the chainstays. Over time we refined this to minimize weight by arranging our chainstay layout asymmetrically and reducing the yoke to a minimal size. It’s one of our most unique frame features and has been copied by other frame makers.
Chain Stay Protector
All Chromags now ship with our injection moulded chain stay protector to help keep the paint fresh and the noise low. These have an adhesive applied, but also slot for zip ties if they come unstuck years down the line, or if you want to apply it to another frame.
|Frame Size||STypical Rider Height: 155cm - 165cm||MTypical Rider Height: 163cm - 174cm||M/LTypical Rider Height: 172cm - 183cm||LTypical Rider Height: 181cm - 192cm||XLTypical Rider Height: 190cm - 200cm|
* Max. post insertion based on Rockshox Reverb
